Alloy Steel Wheel Body

An Alloy Steel Wheel Body (also widely referred to in heavy machinery and OEM replacement markets as a Gear Wheel Body, Drive Wheel Blank, or Machined Wheel Body) is a heavy-duty, high-precision structural rotating component engineered to support immense radial loads, transmit driving torque, and guide heavy industrial assemblies. Manufactured from premium alloy structural steels like 34CrNiMo6 and subjected to rigorous quenching, tempering, and induction hardening, this component is designed for demanding high-stress operating environments such as steel rolling mills, heavy gantry cranes, and large industrial rail transport systems.





1. Working Principle

Load Transmission & Support:

As a core structural link in drive trains or mobile assemblies, the Alloy Steel Wheel Body transfers high-magnitude radial and axial loads from the superstructure or gear drive mechanism directly onto rails or mating mechanical tracks without permanent deformation.



Torque & Motion Guidance:

When integrated as a Gear Wheel Body or Drive Wheel Blank, it receives rotational input via precision-machined bolt circles and keyways, converting motorized torque into smooth linear or rotational motion while maintaining strict axial alignment.



Surface Contact Wear Resistance:

During continuous operation, the induction-hardened tread surface withstands severe rolling friction, localized Hertzian contact stresses, and fatigue wear against high-hardness steel rails.



2. Technical Specifications & Material Chemical & Mechanical Composition

No.	Technical Attribute	Engineering Specification & Tolerance
1	Product Nomenclature	Alloy Steel Wheel Body / Machined Wheel Body / Crane Wheel Body
2	Material Grade	34CrNiMo6 or similar alloy steel
3	Outer Diameter (OD)	Ø570 mm (Tolerance controlled within -0.3 to -1.5 mm)
4	Bore Diameter	Ø430 h7 for precision bearing / shaft fit
5	Inner Step / Pilot Diameter	Ø515 h9
6	Bolt Circle Diameter (LK 1)	Ø370 ±0.2 mm (6x mounting holes across circumference)
7	Bolt Circle Diameter (LK 2)	Ø270 ±0.2 mm (6x secondary mounting holes)
8	Threaded Mounting Holes	2x sets of Ø240 M6 (tolerance -0.008 / -0.037)
9	Overall Width / Thickness	225 mm (DIN 1013 standard profile)
10	Tread Hardness (Randschichthärtung)	49 ± 2 HRC (Induction surface hardened)
11	Hardening Depth (Rht)	Minimum 18 mm
12	Surface Roughness	Ra 1.6 to Ra 6.3 µm across functional seating and tread zones
13	Geometric Tolerances	Radial runout 《 0.032 (Datum A); Axial runout 《0.088 (Datum A-B)
14	Unit Component Weight	Approx. 239.5 kg / piece
15	Quality & Inspection Standard	100% Dimensional CMM report & Ultrasonic Testing (UT) verified



Element	Standard Min (%)	Standard Max (%)	Actual Tested (%)	Metallurgical Function
Carbon (C)	0.30	0.38	0.34	Provides base hardness, tensile strength, and wear resistance
Silicon (Si)	0.10	0.40	0.25	Acts as a deoxidizer; increases elasticity and yield strength
Manganese (Mn)	0.50	0.80	0.65	Improves hardenability, deep hardening, and tensile strength
Chromium (Cr)	1.30	1.60	1.45	Enhances wear resistance and structural hardenability
Nickel (Ni)	1.30	1.70	1.50	Dramatically improves low-temperature impact toughness and fatigue resistance
Molybdenum (Mo)	0.20	0.30	0.25	Prevents temper brittleness and increases high-temperature strength
Phosphorus (P)	-	0.025	0.015	Impurity element; strictly controlled to eliminate brittle fracture
Sulfur (S)	-	0.025	0.012	Impurity element; strictly controlled for optimal impact ductility
Iron (Fe)	Balance	Balance	Balance	Primary metallic matrix



3. Common Operational Defects and Professional Solutions

Defect 1: Surface spalling or micro-cracking on the wheel tread under heavy cyclical loads.



Solution: Implement strict ultrasonic testing (UT) on raw forgings to eliminate internal segregation, and maintain precise induction hardening control to ensure a seamless transition gradient between the hardened case and tough core.



Defect 2: Premature bore wear or loosening of bearing fits during high-torque transmission.



Solution: Apply precision CNC finish boring followed by multi-point air-gauge inspection to verify strict ISO h7 tolerances, ensuring interference fit integrity under thermal expansion.



Defect 3: Radial or axial runout exceeding allowable limits, causing mechanical vibration.



Solution: Utilize multi-axis CNC turning and milling centers with integrated Datum A and A-B alignment clamping to lock concentricity in a single setup.



Defect 4: Thread stripping or shearing on bolt circles (M6 / M12 tapped holes) under heavy shock loads.



Solution: Standardize thread-depth machining with high-precision tap profiling, followed by 100% thread-gauge verification prior to anti-rust oil coating.



Defect 5: Atmospheric corrosion during ocean freight and long-term storage.



Solution: Apply a multi-layer protective regimen including dewatering rust-preventative oil, secure inter-layer wrapping, and sturdy ISPM15-compliant fumigated wooden export crating.



4. OEM Brand Alternatives & Mainstream Industrial Applications

This custom-engineered Alloy Steel Wheel Body serves as a direct drop-in, high-durability replacement or custom OEM alternative for heavy industrial assemblies manufactured by global leaders such as SMS Demag, Danieli, and Morgårdshammar.



Mainstream Industrial Applications:

Steel Rolling Mill Stand Assemblies (Drive & Work Roll Systems): Act as robust heavy-duty rolling blocks and drive components that withstand severe thermal and mechanical shocks in hot and cold strip mills.



Heavy Overhead Crane & Gantry Systems (Crane Wheel Body / Rail Wheel Body): Deployed on high-tonnage bridge cranes and transfer cars to carry multi-ton payloads along crane runways with minimal track wear.



Industrial Transfer Cars & Heavy Material Handling Transporters: Utilized as high-load-bearing Drive Wheel Blanks in metallurgical plants for transporting ladles, slabs, and heavy coils across factory bays.



5. Manufacturing Process & Critical Control Points





The production of a high-performance Machined Wheel Body requires a strictly controlled metallurgical and machining workflow (proven by standard 30-to-45-day production schedules):



Step 1: Ingot Casting & Free Forging (approx. 30 days): Raw 34CrNiMo6 alloy steel ingots are forged under hydraulic presses with high forging ratios to refine grain structures and eliminate internal porosity.



Step 2: Rough Machining (approx. 18 days): Removal of outer forging skin, initial turning of outer diameters, and preliminary facing.



Step 3: Quenching & Tempering (QT Heat Treatment, approx. 7 days): Thermal refinement to achieve the specified tensile strength and core toughness.



Step 4: Semi-Finish Machining (approx. 15 days): Precision turning of stepped diameters, locating shoulders, and preliminary boring.



Step 5: Hole Drilling & Tapping (approx. 15 days): CNC machining of bolt circles, M6 tapping, and pin holes.



Step 6: Tread Induction Hardening (approx. 5 days): Localized high-frequency surface hardening to achieve 49±2 HRC with 》18mm depth.



Step 7: Fine Finishing & Grinding (approx. 10 days): Final grinding of critical fits and geometric tolerance verification.

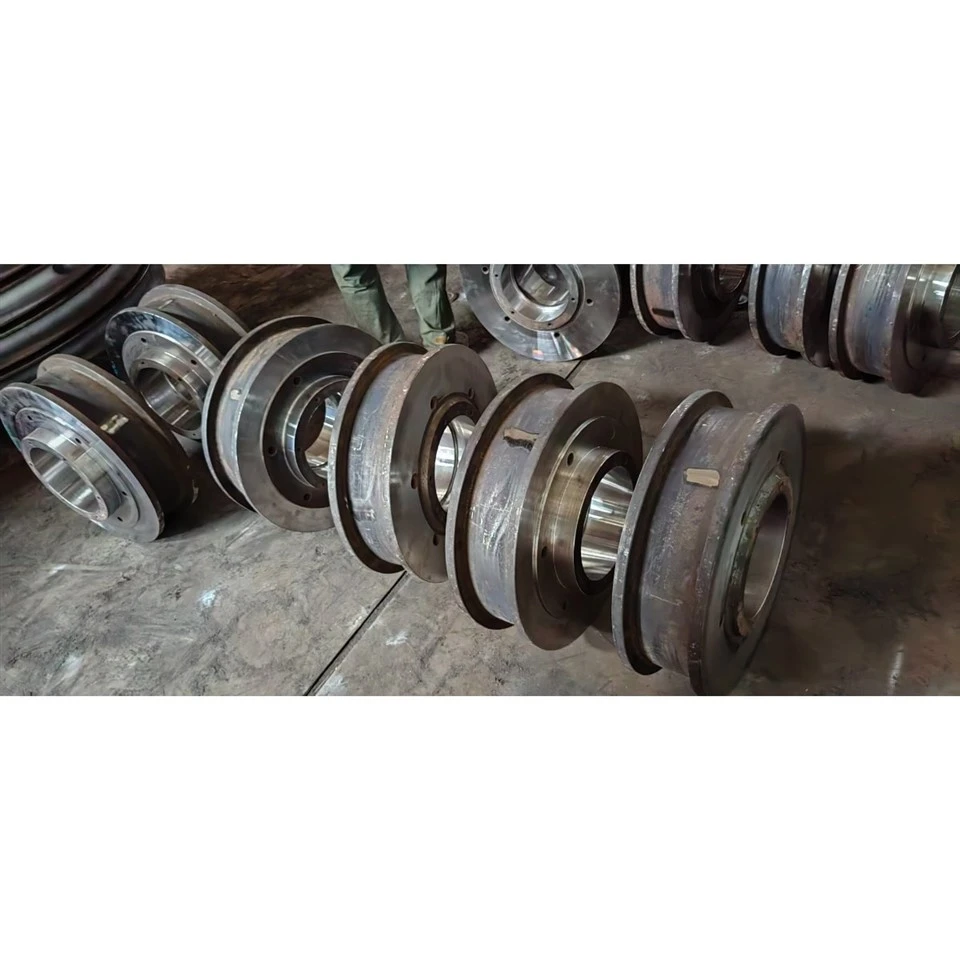

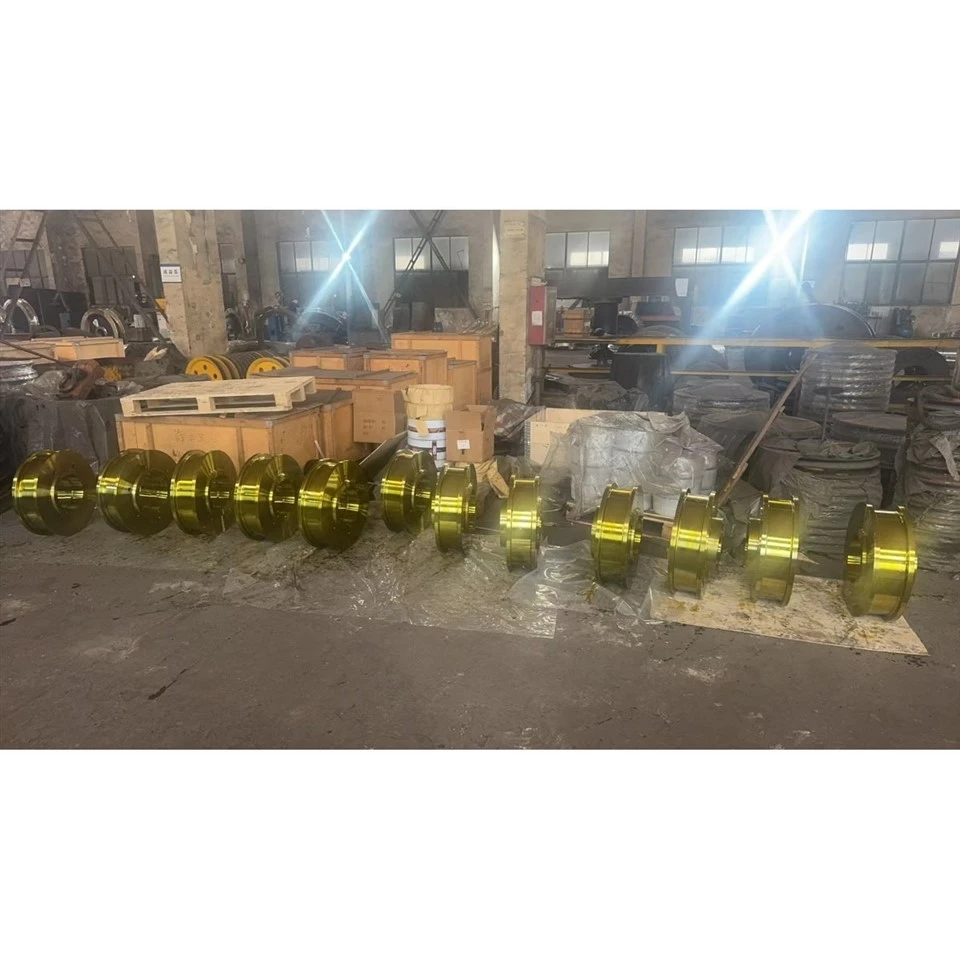

Step 8: Protective Painting & Packaging (approx. 7 days): Industrial anti-corrosion coating and robust export wood crate packaging.



6. Quality Assurance & Inspection Standards

100% CMM Dimensional Verification: Every manufactured Alloy Steel Wheel Body is rigorously inspected against engineering drawing tolerances (such as Ø570, Ø430h7, and depth dimensions).



Metallurgical & Hardness Testing: Certified lab testing verifying chemical composition conformance to 34CrNiMo6 and surface hardness depth verification.



Non-Destructive Testing (NDT): Ultrasonic (UT) and Magnetic Particle (MT) testing is conducted on raw forgings and finished critical stress zones to ensure zero internal cracks or inclusions.



Traceability & Documentation: Complete material test reports (MTR), heat treatment curves, and inspection sheets delivered with every shipment batch.



7. FAQ

Q1: Can you manufacture these wheel bodies based on custom OEM drawings or foreign standards (DIN/EN)?



A: Yes. We specialize in non-standard custom manufacturing based on your provided technical drawings (such as German/European DIN standards, material 34CrNiMo6).



Q2: What is the standard lead time for a batch of industrial wheel rollers or drive blanks?



A: Standard production cycles for custom batches typically range from 8 to 12 weeks, encompassing forging, heat treatment, precision CNC machining, and rigorous inspection.



Q3: How do you guarantee consistency in surface hardening depth and hardness?



A: We use advanced induction hardening equipment with automated pyrometric temperature control, verified by destructive/non-destructive hardness depth testing on sample coupons or test reports.



Q4: What protective measures are taken for international shipping to prevent rust?

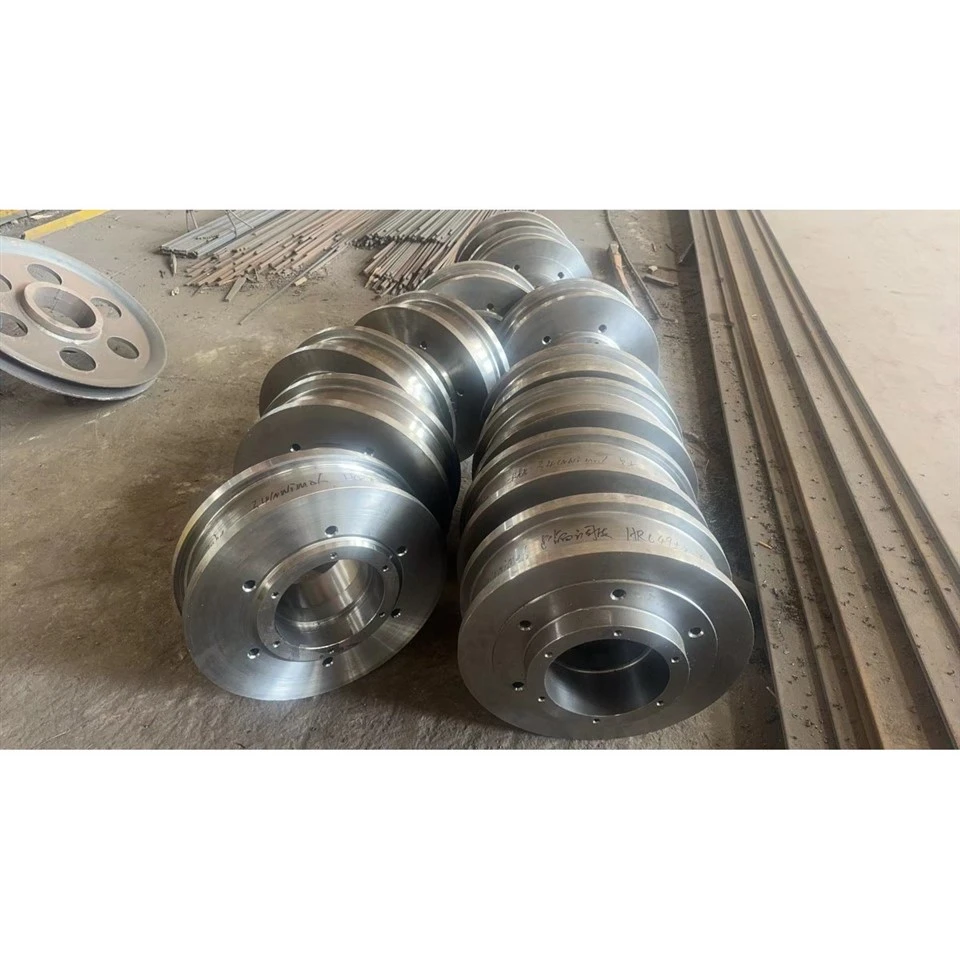

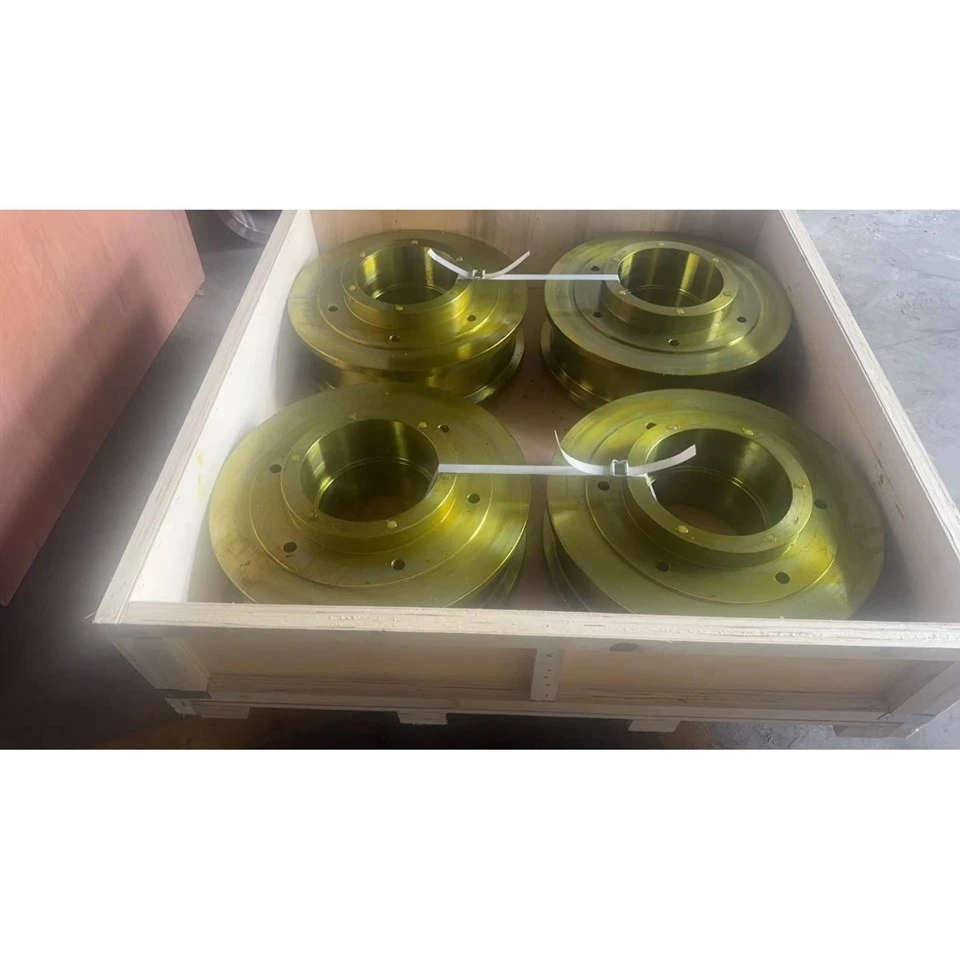

A: All machined surfaces are coated with high-grade industrial anti-rust oil, wrapped in moisture-barrier plastic film, and securely packed in heavy-duty ISPM15-fumigated wooden export crates.



Q5: What commercial and shipping terms do you support?



A: We flexibly support FOB (Shanghai), CIF, and DDP terms under Incoterms 2020, backed by full export documentation and third-party inspection support (SGS/BV).



8. Ready to Upgrade Your Heavy Machinery Spares? Send Us Your Inquiry Today!

Looking for a reliable factory-direct partner for high-precision Alloy Steel Wheel Bodies, Crane Wheel Bodies, or custom Drive Wheel Blanks? Whether you need custom replacements for rolling mills or heavy cranes based on complex European engineering drawings, our engineering team is ready to deliver.



Contact us today with your drawings and specifications for a fast, competitive factory quotation!
