1. Product Overview



The wood chips feeding system is a core piece of equipment in industrial pulping, fiberboard manufacturing, and biomass energy processing. The primary function of this system is to continuously and uniformly transport and compress wood chips from an atmospheric pressure environment into a high-pressure or pre-steaming vessel, while simultaneously forming a dense "plug" to prevent steam or chemical leakage from the system.



2. System Classification



Plug Screw Feeder: Responsible for transporting and compressing wood chips, using its geometric structure (such as the conical section design) to compress chips into a dense plug, which serves as a seal.

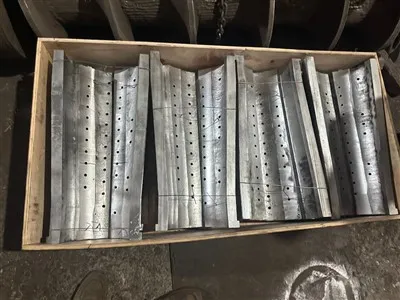

Plug Screw Throat / Wearing Liner: Works in conjunction with the feeding screw and is typically made of high-strength, wear-resistant materials to withstand high pressure and abrasive wear, ensuring long-term system operation.



3. Workflow



The wood chip feeding system process follows these key steps:



Material Feeding: Wood chips are fed into the feeder inlet by transport equipment.

Compression and Sealing: The rotating feeding screw pushes the wood chips into a conical tube; under mechanical force, the material is dewatered and compressed, forming a solid plug at the end of the feeder capable of withstanding pressure differentials.

Pressure Isolation: The dense plug effectively isolates the atmospheric feeding zone from the high-pressure process zone, ensuring process stability and preventing steam backflow.

Material Discharge: Wood chips are continuously fed into downstream pre-steaming or cooking vessels.



4. Production Advantages



High Sealing Performance: Utilizing a professionally designed conical feeding screw structure to minimize steam loss and improve thermal energy efficiency.

Wear-resistant Design: Core components (such as the throat and screw) are selected from special wear-resistant materials (e.g., DIN 1.4028 high-chromium alloy steel) with hardness reaching 43 HRc, significantly extending maintenance cycles.

Precision Machining: Strictly processed according to engineering drawings, ensuring precision in component fit and structural integrity.

Modular Maintainability: The throat is designed as a multi-part structure, facilitating easy disassembly, inspection, and replacement, thereby reducing downtime.



5. Production Capabilities



Advanced Manufacturing Technology: Utilizing high-precision casting and machining processes to ensure geometric tolerances meet the demands of high-pressure operation.

Customized Solutions: Capable of modifying screw structures (such as adding a conical tail section) or performing special dimensional processing based on specific site requirements to adapt to existing feeding systems.

Quality Assurance: All manufactured parts comply with international manufacturing standards, passing strict material composition control (e.g., the ratio of manganese, chromium, and carbon elements) and hardness testing to ensure operational reliability in harsh industrial environments.
