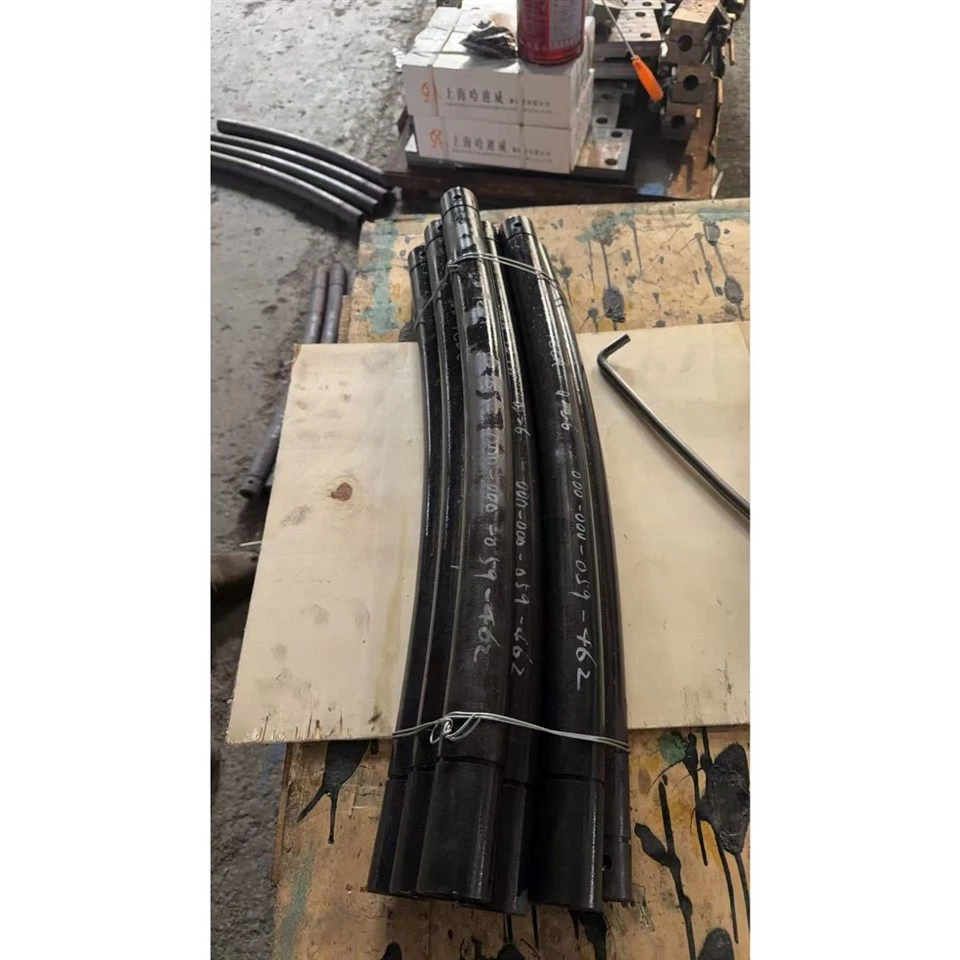

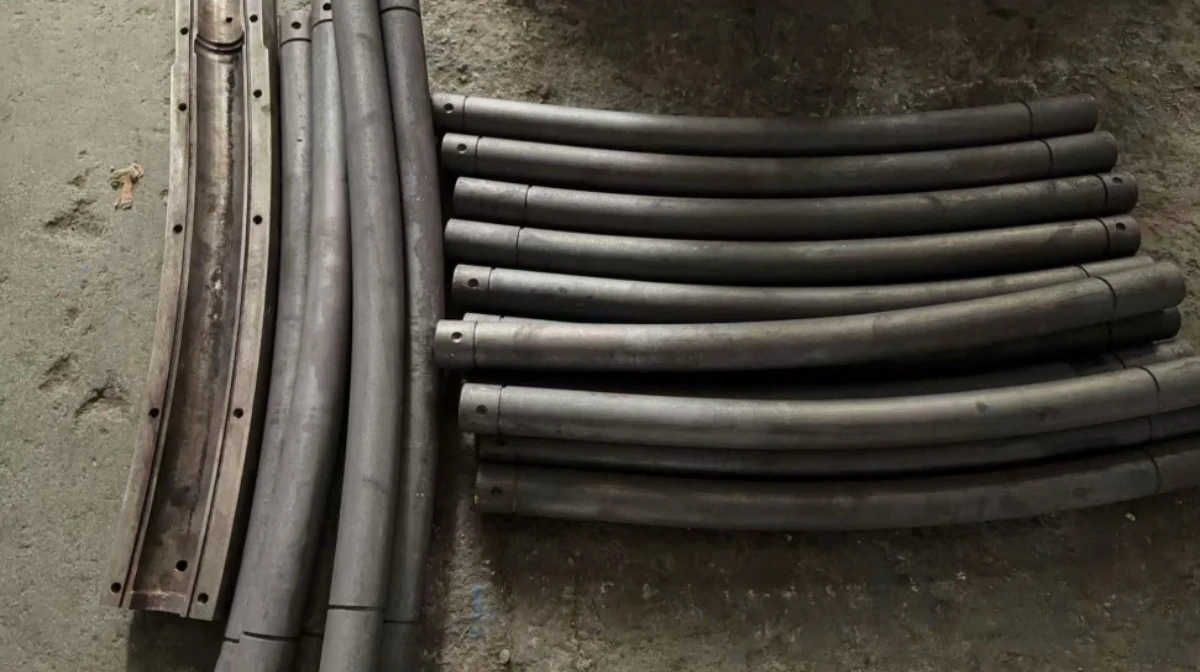

Machined Metal Parts Pipe Guide

The Pipe Guide is a critical, heavy-duty Machine Component engineered for heavy industrial tube-forming and bending equipment and continuous metallurgical production lines. As vital spare parts for machinery brands, these custom CNC-machined metal parts provide precise axial direction, internal radius support, and bending guidance to prevent ovalization, cracking, or surface buckling during pipe manufacturing.





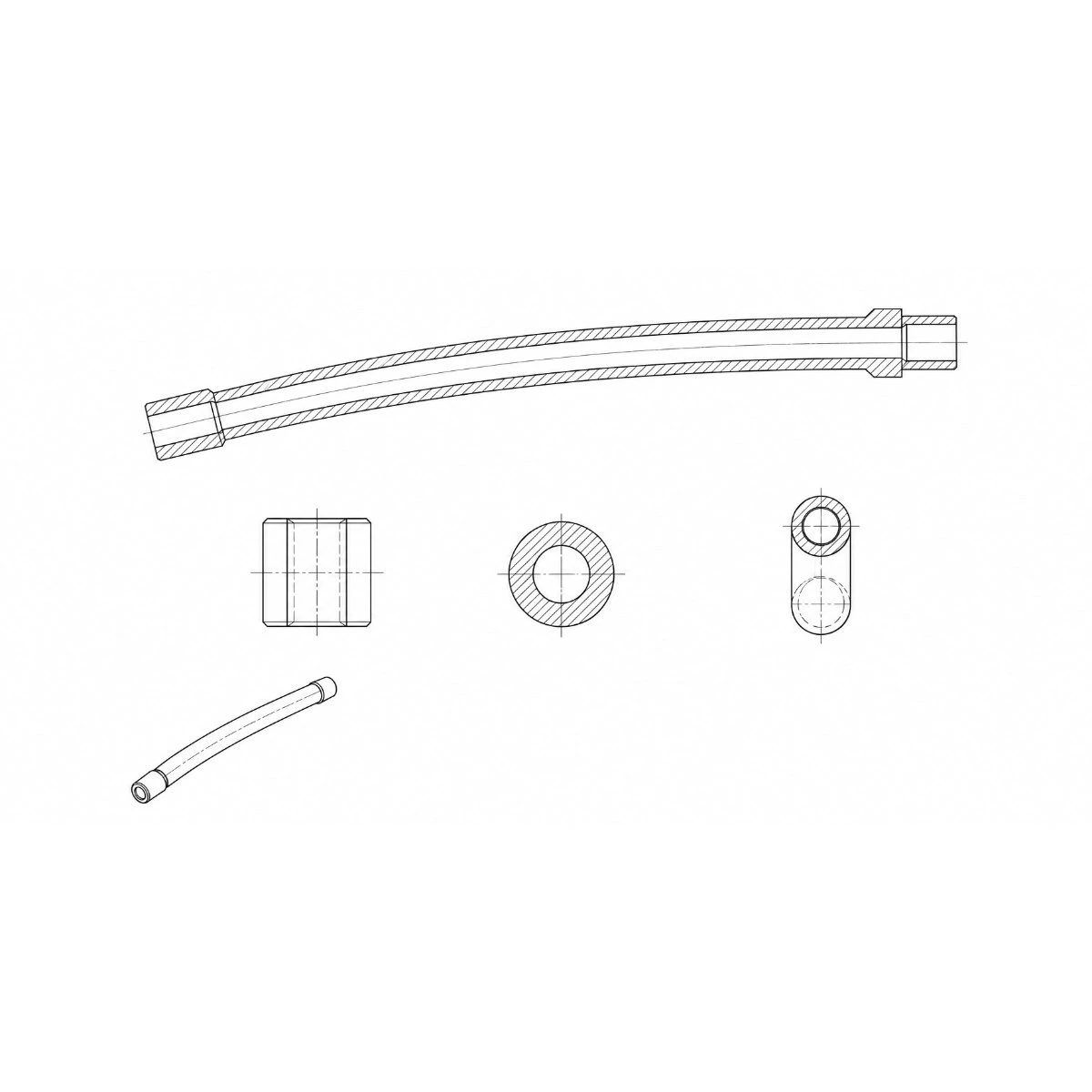

Key Technical & Drawing Specifications



Dimensional Accuracy & Fits: Features a primary outer diameter machined to Φ42 h9 (+0.062) for a high-precision sliding fit within guide channels.



Precision Curvature: Specially engineered with an arc radius of R1801.037 and an arc length of 702.6 mm, flanked by straight sections measuring 83 mm and 156 mm.



Critical Tolerances & Features:



Φ46 Zone Tolerance: Strict ±0.1 mm tolerance within designated contact zones.



Grooves & Pin Holes: Precision-machined locking grooves (Φ30, 20 mm width) and pin holes (Φ10 mm) for secure assembly.



Radius Transitions: Smooth internal chamfers and corner radii (R0.1 / R0.3 / 1 x 45°) to eliminate stress concentration.





Material: Cr12MoV Alloy Tool Steel

Manufactured from premium Cr12MoV alloy tool steel with a specified hardness of HRC55-58:



Exceptional Wear Resistance: Cr12MoV is a high-carbon, high-chromium ledeburitic tool steel known for its exceptional abrasion resistance and dimensional stability under heavy friction.



High Hardness & Strength: Heat-treated to HRC55-58, providing superior surface hardness to withstand intense mechanical sliding wear against metal tubes.



Extended Service Life: Ideal for high-stress industrial spare parts operating in rigorous, repetitive forming cycles.



Manufacturing Process & Quality Control

Pre-Bending Machining: According to customer requirements, raw materials undergo initial rough machining, turning, grooving, and hole drilling prior to hardening and forming.



Heat Treatment & Hardening: Precisely quenched and tempered to achieve the required hardness range of HRC55-58 for optimal toughness and wear resistance.



Precision Bending & Inspection:



Template Verification: Every bent curve is strictly verified against the customer drawing file testing template/gauge to ensure perfect matching with the required radius (R1801.037).



Traceability Stamping: Laser-marked or stamped according to specifications, accompanied by strict dimensional, material composition, and hardness reports.



Industry Applications & Advantages

Primary Applications:

Metallurgy production lines, tube processing units, cold/hot pipe bending mills, and steel plant equipment.



Key Advantages:



Superior Wear-Resistant Life: The Cr12MoV tool steel construction drastically reduces groove wear during high-volume pipe feeding and bending.



High Interchangeability: Fully compliant with original OEM specifications for quick replacement and minimal equipment downtime.



Custom OEM Capability: As a specialist supplier of Custom CNC Machined Metal Parts, we deliver tailored solution suites backed by full dimensional, material, and hardness inspection reports.



Welcome to consult if you are looking for pipe guide manufacturer. Thanks.
