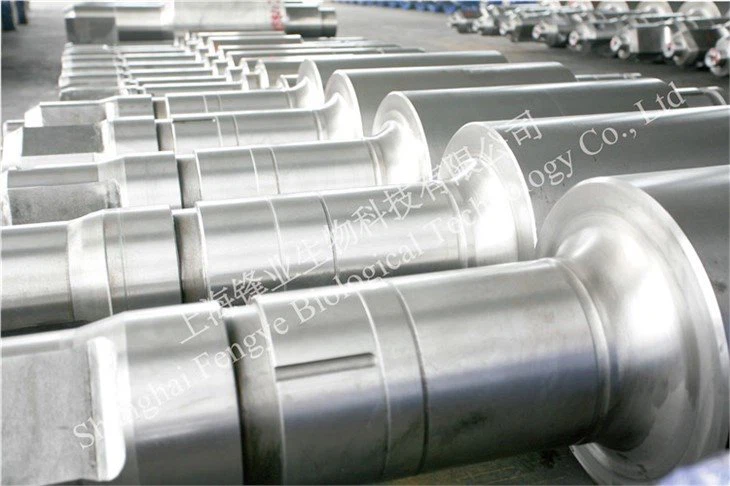

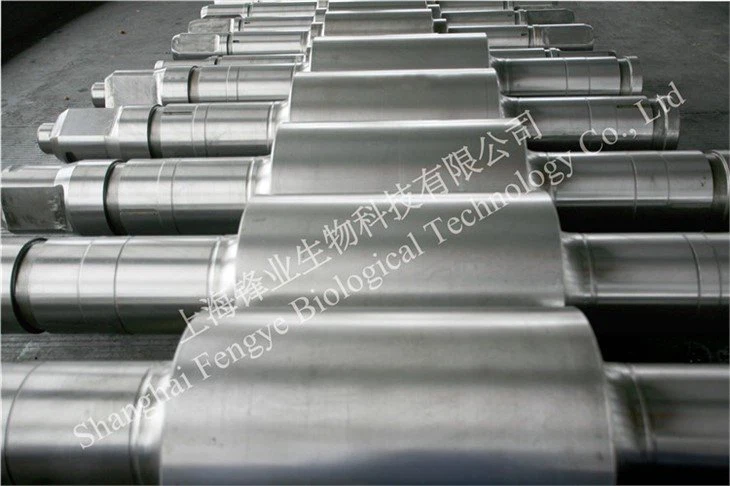

Wire Rod Rolling Mill Roll
The cast rolls are widely used as work roll in the hot rolling mills in steel industrial. The hot rolling mills are including wire rod rolling mill, rebar rolling mill, profile steel rolling mill and hot strip rolling mill.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Cast Roll
Description
The cast rolls are widely used as work roll in the hot rolling mills in steel industrial. The hot rolling mills are including wire rod rolling mill, rebar rolling mill, profile steel rolling mill and hot strip rolling mill. For different stands in various mills, the request of the cast rolls is quite different. For example, the materials for the rough mill stands are different from the finishing stand. Also, the materials for wire rod mill will differ from the materials for hot strips. To meet a wide use of the rolls, we supply a large range of materials for the mills such as Nodular Graphite, Adamite Steel, Graphite Steel, Chilled Cast-Iron, High-Speed Steel, High Chrome Cast Iron. Cast Roll Manufacturing request various technologies, which include metallurgical technologies, heat treatment techniques and mechanical techniques. We have production lines for both cast iron rolls and cast-iron rings. The Cast Iron Roll production line has various of medium-frequency furnace (15t, 10t, 5t, 1.5t, and 1.0t). We also have the centrifugal casting machines with max capacity 15 tons. The diameter of our cast rings and sleeves can reach 1500mm and maximum length is 800mm with unit weight up to 6 tons.
Material
Grade | C | Si | Mn | Cr | Ni | Mo | Hardness (HS) | Tensile Strength (MPa) |
AD160 | 1.50/1.70 | 0.30/1.00 | 0.80/1.30 | 0.80/2.00 | >0.20 | 0.20/0.60 | 40/60 | >500 |
AD180 | 1.70/1.90 | 0.30/0.80 | 0.60/1.10 | 0.80/1.50 | 0.80/1.50 | 0.20/0.60 | 45/60 | >500 |
AD190 | 1.80/2.00 | 0.30/0.80 | 0.60/1.20 | 1.50/3.50 | 1.00/2.00 | 0.20/0.60 | 50/65 | >500 |
AD200 | 1.90/2.10 | 0.30/0.80 | 0.60/1.20 | 0.60/2.00 | 0.50/2.20 | 0.20/0.80 | 55/65 | >500 |
GS140 | 1.30/1.50 | 1.20/1.60 | 0.50/1.00 | 0.40/1.00 | - | 0.20/0.50 | 40/60 | >500 |
GS150 | 1.40/1.50 | 1.60/1.70 | 0.60/1.10 | 0.60/1.00 | 0.20/1.00 | 0.20/0.50 | 45/60 | >500 |
GS160 | 1.50/1.70 | 0.80/1.50 | 0.60/1.00 | 0.50/1.50 | 1.00/2.00 | 0.20/0.80 | 50/65 | >500 |
GS190 | 1.80/2.00 | 0.80/1.50 | 0.60/1.00 | 0.50/2.00 | 0.50/2.20 | 0.20/0.80 | 55/65 | >500 |
IC | 2.90/3.60 | 0.60/1.20 | 0.40/1.20 | 0.60/1.20 | - | 0.20/0.60 | 55/68 | ﹥230 |
IC I | 2.90/3.60 | 0.60/1.20 | 0.40/1.20 | 0.70/1.20 | 0.50/1.00 | 0.20/0.60 | 60/72 | ﹥230 |
IC II | 2.90/3.60 | 0.60/1.20 | 0.40/1.20 | 0.70/1.20 | 1.00/2.00 | 0.20/0.60 | 60/78 | ﹥230 |
IC III | 2.90/3.60 | 0.60/1.20 | 0.40/1.20 | 0.70/1.20 | 2.00/3.00 | 0.20/1.20 | 65/80 | ﹥230 |
IC IV | 2.90/3.60 | 0.60/1.20 | 0.40/1.20 | 0.70/1.20 | 3.00/4.80 | 0.20/1.20 | 68/85 | ﹥230 |
IC V | 2.90/3.60 | 0.60/1.20 | 0.40/1.20 | 0.70/1.20 | 3.00/4.80 | 0.20/2.00 | 75/90 | ﹥230 |
SGP I | 2.90/3.60 | 1.40/2.20 | 0.40/1.00 | 0.10/0.40 | 1.50/2.00 | 0.20/0.60 | 45/55 | ﹥230 |
SGP II | 2.90/3.60 | 1.20/2.20 | 0.40/1.00 | 0.20/1.00 | 2.00/2.50 | 0.20/0.80 | 60/70 | ﹥230 |
SGP III | 2.90/3.60 | 1.00/2.20 | 0.40/1.00 | 0.20/1.20 | 2.50/3.00 | 0.20/0.80 | 65/75 | ﹥230 |
SGA I | 2.90/3.60 | 1.20/2.20 | 0.20/0.80 | 0.20/1.00 | 2.50/3.00 | 0.50/1.00 | 60/80 | ﹥230 |
SGA II | 2.90/3.60 | 1.00/2.00 | 0.20/0.80 | 0.30/1.50 | 2.50/4.50 | 0.50/1.00 | 70/82 | ﹥230 |
SGA III | 2.90/3.60 | 1.00/2.00 | 0.20/0.80 | 0.30/1.50 | 2.50/4.50 | 0.50/1.00 | 72/85 | ﹥230 |
HiCr I | 2.30/3.30 | 0.30/1.00 | 0.50/1.20 | 12.0/15.0 | 0.70/1.70 | 0.70/1.50 | 65/80 | ﹥230 |
HiCr II | 2.30/3.30 | 0.30/1.00 | 0.50/1.20 | 15.0/18.0 | 0.70/1.70 | 0.70/1.50 | 70/85 | ﹥230 |
HiCr III | 2.30/3.30 | 0.30/1.00 | 0.50/1.20 | 18.0/22.0 | 0.70/1.70 | 1.51/3.00 | 75/85 | ﹥230 |
Production
Application
 |  |
