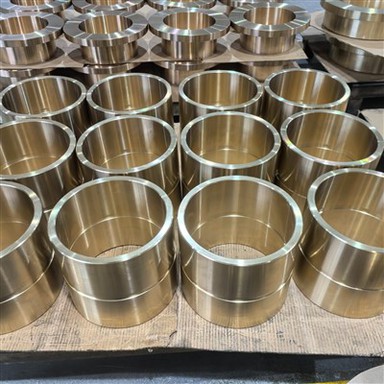

Bronze Sleeve

Bronze sleeves, also known as bronze bushings or plain bearings, are high-performance engineering components designed to facilitate smooth mechanical motion while supporting heavy radial loads.

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

High-Precision Bronze Sleeves:

1. Bronze sleeve:

Bronze sleeves, also known as bronze bushings or plain bearings, are high-performance engineering components designed to facilitate smooth mechanical motion while supporting heavy radial loads. These components are essential in demanding industrial environments, such as steel rolling mills, mining machinery, and maritime engineering. By acting as a sacrificial wear interface between rotating shafts and static housings, Tingxuan Industry bronze sleeves protect expensive machinery from friction-related damage and galling.

2. Material Composition & Properties

We utilize a variety of specialized copper alloys:

Tin Bronze (CuSn series): Renowned for its excellent anti-friction properties and high resistance to corrosion in general engineering environments.

Aluminum Bronze (CuAl series): Offers exceptional tensile strength and superior wear resistance, making it the ideal choice for heavy-duty metallurgical applications.

Phosphor Bronze: Provides high fatigue resistance and elasticity, suitable for high-speed machinery and spring-loaded components.

High-Lead Bronze: Features excellent emergency running properties and self-lubrication, critical for applications where lubrication may be intermittent.

3. Main Production Process

Centrifugal Casting: Molten bronze is introduced into a high-speed rotating mold. The resulting centrifugal force drives the liquid metal against the mold wall, creating a dense, uniform structure free of internal porosity and inclusions common in static casting.

Rough Machining: The raw cast blanks are moved to heavy-duty lathes for initial turning. Removes the oxidized casting skin and establishes the baseline geometric dimensions required for precision finishing.

Finishing & Oil Groove Cutting: Utilizing advanced CNC machining centers, the sleeves are turned to their final specifications with micron-level tolerance. Specialized oil grooves (spiral, figure-eight, or circular) are precision-cut into the surface to facilitate optimal lubricant distribution.

Inspection & Quality Control: Every finished component undergoes rigorous testing, including dimensional verification using precision calipers/micrometers and surface roughness analysis to ensure zero-defect delivery.

4. Tingxuan Industry Core Advantages

Superior Structural Density: The centrifugal casting method yields a finer grain structure than traditional sand casting, significantly increasing the sleeve's hardness and fatigue life.

Precision Tolerance Management: Our CNC capabilities allow for strict adherence to H7/g6 tolerances, ensuring perfect interchangeability and seamless installation.

Optimized Lubrication Engineering: Custom-designed oil grooves prevent localized heat buildup, drastically reducing the risk of premature component failure under high-load conditions.

Large-Scale Customization: Tingxuan Industry supports a wide range of international standards (ASTM, DIN, JIS, BS) and possesses the facility capacity to manufacture massive sleeves for the world's largest industrial mills.
