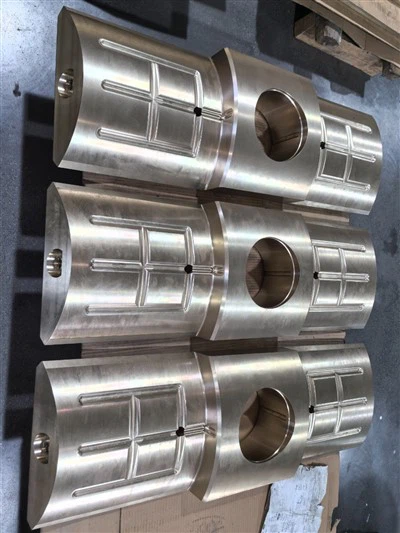

Copper Slides

High-Performance Copper Slides





In heavy-duty industrial machinery, the efficiency of moving parts often dictates the overall productivity of the plant. Copper slides, also known as copper wear plates or sliding guide plates, are critical components used to reduce friction, prevent galling, and extend the service life of mechanical assemblies. From steel rolling mills to high-speed stamping presses, these precision-engineered parts ensure smooth linear motion under extreme pressure and temperature.



1. Premium Raw Materials of copper slides



The performance of a copper slide begins with its chemical composition. Not all copper alloys are created equal; the selection depends on the specific load, speed, and environmental conditions of the application.



Alloy Grade (UNS/DIN)	Main Composition	Key Characteristics	Typical Application
Aluminum Bronze (C95400)	Cu, Al, Fe, Mn	Extraordinary strength, high corrosion resistance, and excellent wear limits.	Heavy-duty steel mill liners, earthmoving equipment.
Tin Bronze (C90700/CuSn10)	Cu, Sn, P	Superior lubricity, good impact resistance, and high fatigue strength.	High-speed gears, worm wheels, and precision slides.
Manganese Bronze (C86300)	Cu, Zn, Mn, Al	Capable of operating under extremely high static loads.	Bridge bearings, heavy gate valves, and hydraulic presses.
Leaded Bronze (C93200)	Cu, Sn, Pb, Zn	Self-lubricating properties due to lead content; excellent anti-seizing.	General-purpose bushings and low-load sliding plates.



Self-Lubricating Graphite Plug Inserts:

For maintenance-free operation, many of our copper slides are embedded with high-purity graphite plugs. These "Oiles" style copper slides provide a constant lubricant film, eliminating the need for manual greasing in hard-to-reach areas.



2. Advanced Machinery



Our factory transforms raw ingots into high-tolerance copper slides with a suite of specialized industrial machinery. Our facility is equipped to handle both standard dimensions and complex, tailor-made geometries.



Centrifugal Casting Machines: Used to create dense, porosity-free blanks. This process uses centrifugal force to ensure the alloy's grain structure is uniform and high-strength.



Large-Scale CNC Milling Centers: These 4-axis and 5-axis machines are used to mill the precise oil grooves (V-shaped, cross-hatch, or figure-eight) and counterbore holes required for mounting.



Precision Grinding Machines: To achieve the required surface roughness (Ra 0.4 - 0.8), slides undergo surface grinding to ensure absolute flatness and parallelism.



CNC Drilling & Tapping: Ensures every bolt hole is positioned with micron-level accuracy, facilitating easy "plug-and-play" installation for our customers.



3. The Manufacturing Process







1) Melting and Casting:



In the induction furnace, high-purity copper is alloyed with tin, aluminum, or manganese. We utilize Centrifugal Casting or Continuous Casting to produce blanks that are significantly more durable than traditional sand-cast alternatives.



2) Heat Treatment (Optional):



Depending on the alloy, parts may undergo stress-relieving or solution-hardening to enhance mechanical properties and ensure the slides do not warp during operation.



3) Rough Machining:



The cast blanks are planed or milled to their basic rectangular or curved shapes. Excessive material is removed to reveal the solid, defect-free core of the metal.



4) Precision Finishing and Oil Groove Cutting:



We machine intricate lubrication channels that allow oil or grease to flow evenly across the friction surface. If requested, we also perform the precision drilling of holes for graphite inserts.



5) Surface Treatment and Polishing:



To prevent oxidation and enhance wear resistance, copper slides may undergo specialized surface treatments. The final polishing ensures the sliding surface is mirror-like, reducing the initial friction coefficient.



4. Why Choose Our Copper Slides?



Tailor-Made Solutions: We don't just sell off-the-shelf parts. We specialize in producing components based on your specific technical drawings and tolerance requirements.



Dense Material Structure: By avoiding traditional sand casting, our copper slides feature a dense grain structure that offers up to 30% longer service life compared to standard market products.



Stringent Quality Control: Every batch undergoes Ultrasonic Testing (UT) to detect internal defects and CMM (Coordinate Measuring Machine) inspection to verify dimensional accuracy.



Global Logistics Expertise: Utilizing the China-Europe Railway Express (Belt and Road), we offer reliable and cost-effective shipping directly to industrial hubs across Europe and the Middle East.



Direct Technical Support: Our engineers work closely with your procurement team to select the ideal alloy grade, ensuring you don't overpay for materials while achieving maximum performance.



5. Copper Slides Applications Across Industries



Our copper slides are the trusted choice for:

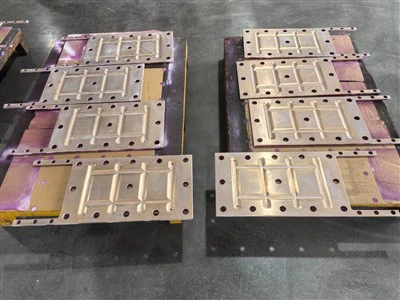

Steel & Metallurgy: Slipper pads, mill housing liners, and screw-down nuts.

Automotive Stamping: Guide plates for large die-casting and stamping molds.

Hydro & Energy: Gate guide vanes and turbine sliding components.

General Machinery: Lathe bedways and heavy-duty conveyor guides.



Welcome to consult if you have copper slides or copper parts inquiries. Thanks.
