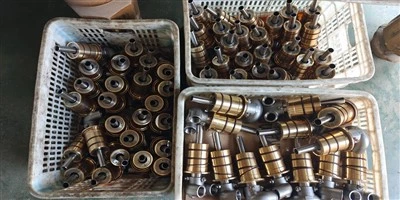

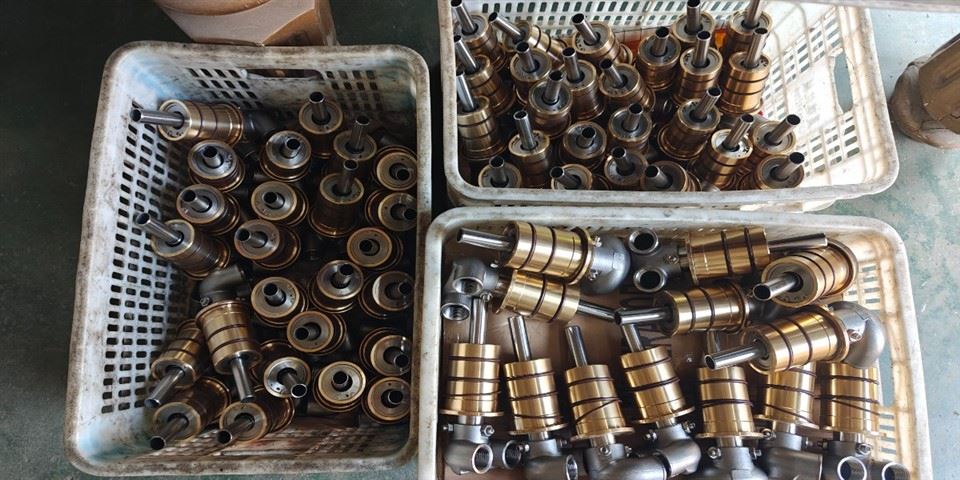

TXHB Rotary Union

Rotary Unions for Continuous Casting Machines: Core Components for Enhancing Steel Production Efficiency





In modern steel manufacturing, the stable operation of the continuous casting machine is critical to production efficiency and product quality. As a vital connection component within the cooling system, the continuous casting machine rotary union plays a crucial role in transporting cooling media-such as water, coolant, or hydraulic oil-while ensuring reliable sealing for rollers operating under high-pressure, high-temperature, and high-speed conditions.



What is a Continuous Casting Machine Rotary Union?



A rotary union, also known as a rotary joint, is a precision mechanical sealing device. In continuous casting machines, it links fixed supply piping to high-speed rotating casting rollers, allowing cooling fluid to enter the roller interior without leakage, thereby effectively dissipating the intense heat generated by the molten steel.

The series of rotary unions developed by Tingxuan Industry is a professional solution engineered specifically for the harsh operating environments of the metallurgical industry.



Core Technical Features and Design Advantages



Designed to withstand the complex conditions of continuous casting-including high temperatures, significant vibrations, and high pressures-high-quality rotary unions offer several technical advantages:



1. Advanced Mechanical Seal Structure



Modern rotary unions for continuous casting often utilize balanced mechanical seals. This design effectively reduces the face pressure on the seals and significantly minimizes wear, extending the union's service life and maintaining superior sealing performance even during frequent pressure fluctuations.



2. High-Temperature and Wear-Resistant Materials



Internal components are typically constructed from high-temperature and wear-resistant materials. Combined with automatic lubrication technology, these rotary unions can operate at temperatures as high as 230°C, ensuring that seals do not fail under the strain of continuous production.



3. Integrated Compact Structure



By allowing the majority of the union body to be embedded into the roller, with only the connecting flange exposed, this "embedded" design saves space and optimizes the layout between the roller path and flow channels. This not only shortens the axial length but also creates an integrated housing structure, which greatly simplifies disassembly and routine equipment maintenance.



4. Automatic Compensation and High Compatibility



Select series features automatic compensation for seal element wear and utilizes embedded threaded connections, ensuring installation reliability in harsh environments. Their strong design compatibility makes them suitable for a variety of industrial cooling media, reducing operational and maintenance costs for enterprises.



How to Select the Right Rotary Union?



Working Pressure and Rotation Speed: Confirm the maximum pressure (e.g., 1.2MPa or 1.5MPa) and rotation speed (e.g., 60r/min or 200rpm) of your equipment to ensure the union operates within its rated capacity.

Media Characteristics: Choose materials compatible with your specific cooling medium (water, oil, or coolant) to prevent corrosion or swelling.

Spatial Constraints: Refer to detailed product specification drawings based on the mounting dimensions of your rollers to ensure the flange connection type and axial space match.

Environmental Adaptability: If the site water quality is poor, consider models equipped with seal protective covers or those designed for simplified maintenance.





Though small, the continuous casting machine rotary union is the "artery" that keeps the casting production line running smoothly. By choosing high-performance rotary unions-such as those designed by professional manufacturers like Tingxuan Industry-steel companies can reduce maintenance downtime caused by leaks and improve cooling efficiency, ultimately achieving cost reduction and production efficiency goals.



Welcome to consult. Thank you.
